Make: Weichai Euro 2 Intercooled
Model Confirguration: WP 12.420 E32
Max Power - Kw @ r/min: 309/2200
Max Torque - N.m @ r/min: 1750/1300-1400
HP: 420
Cylinder: 6 Inline
Water Cooled: Yes
Direct Injection: Yes
Engine Driven P.T.O: No
Displacement (I): 11.596
Compression Ratio: 17:01
Service: Dual circuit air brakes
Emergency / Parking: Spring potential brake
Auxiliary: ABS & EVB
Size and ply rating: 315-80R22.5 incl. spare wheel
Type: VR4/01D-7.5
Suspension: Non-free standing stabilization leafspring, hydraulic shock absorber, transverse stabilizer
Type: HL7/015DS-13/4.2
Suspension: suspension, 13 pcs leaf spring (each 20mm)
Alternator: 55Amp
Starter Motor: 5.58kW
Batteries: 2 x 12V - 135AH
Gradeability @ GVM: 24% @GVM
Max Geared Road Speed: 105km/h
Final Drive Ratio: 4,769
Make / Type / Size: GFX 430mm single
Operation: Single dry frictional disc, diaphragm spring, pulling type
New Vehicle: 3 years/300 000km (South Africa only)
Make/Model: 12JS200TA + QH50
No Gears: 12
Synchromesh or Constant Mesh: Synchromesh
Transfer Box:N/A
P.T.O: Yes
Overall Length (OL): 6 935
Overall Width (OW): 2 495
Overall Height (OH): 3 160
Front Overhang (FOH): 1 410
Rear Overhang (ROH): 625
Wheel Base (WB): 4 175
Bumper to Back of Cab (BBC):2 420
Cab to Rear Axle / unit (CA): 3 165
Turning Radius (TR):8 500
Fuel Tank Capacity (FTC): 400 LTR Aluminum
Manufacturers Gross Vehicle Mass (GVM): 26 000
Manufacturers Gross Combination Mass (GCM): 65 000
Manufacturers Front Axle Mass (GA): 7 500
Manufacturers Rear Axle Mass (GAU): 26 000
Permissible Maximum Vehicle Mass (V): 25 500
Permissible Maximum Front Axle Mass (AF): 7 500
Permissible Maximum Rear Axle Mass (AR): 18 000
Unladen Front Axle Mass (UF): 4 700
Unladen Rear Axle Mass (UR): 4 900
Total Unladen Mass (UT):9 600
Permissible Max Drawing Vehicle Mass (D/T): 65 000
Day Cab: Hydraulic Tiltable Cab
SPECIFICATIONS
Additional Applications
| Models | Variant | Price |
|---|---|---|
| 2642 6x4 |
Truck Tractor | R P.O.A |

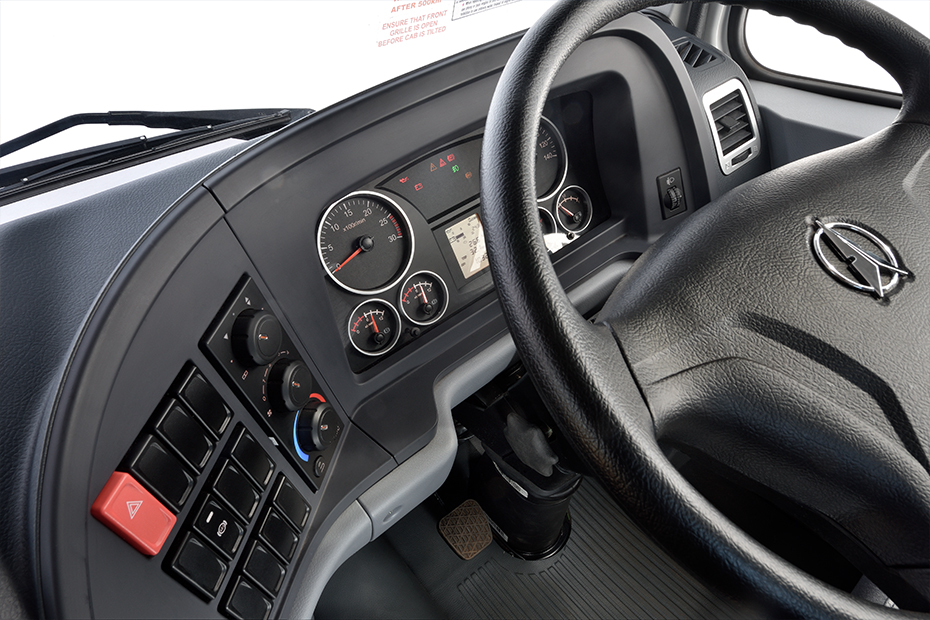

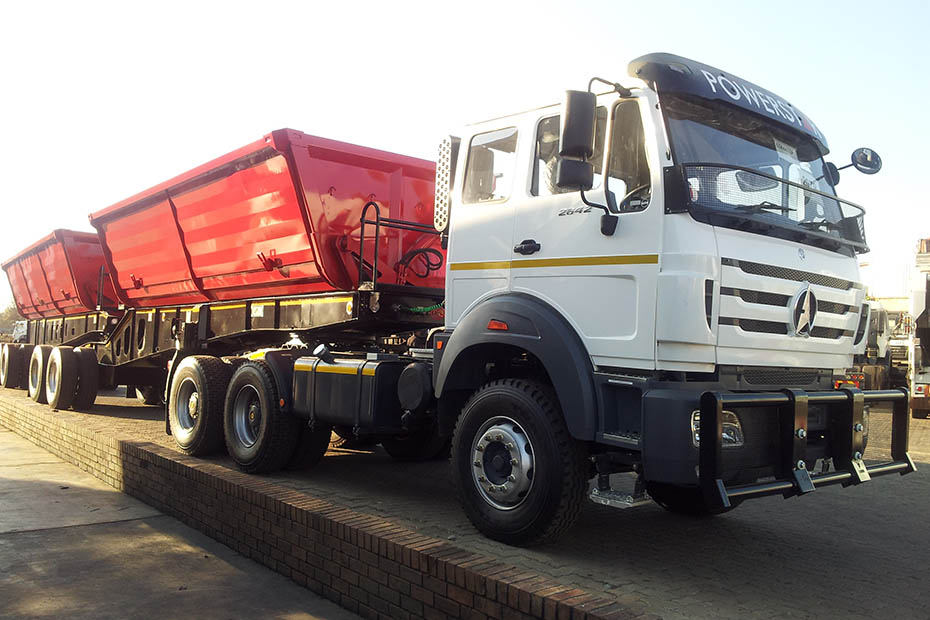

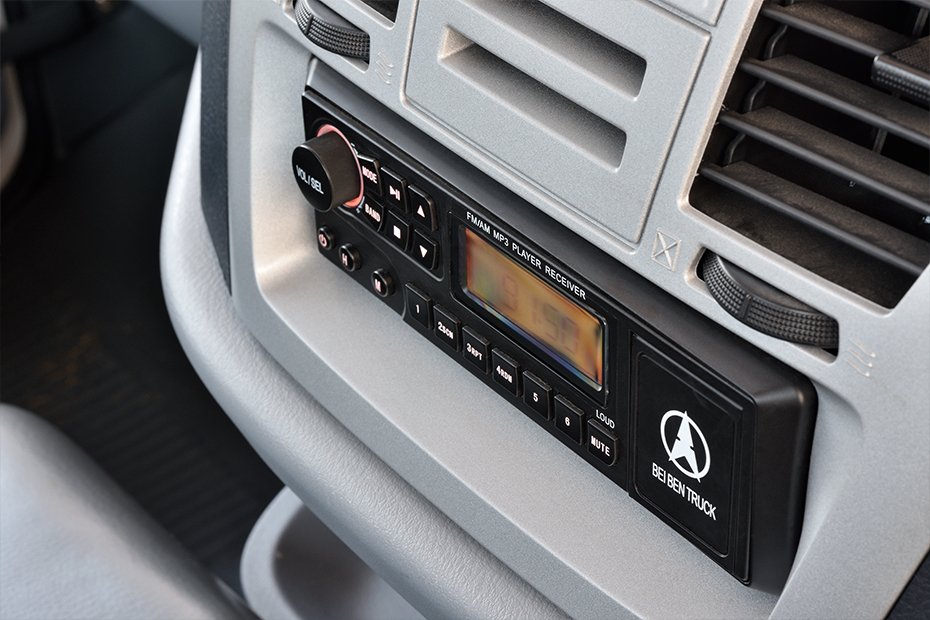

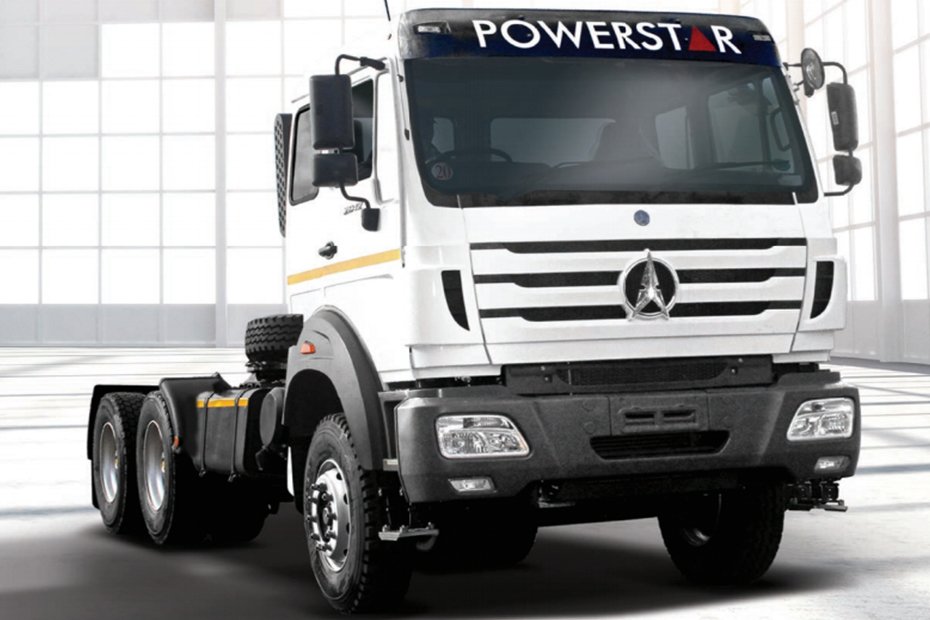

Gallery
