Make: Weichai Euro 2 Turbo charged Intercooled
Model Confirguration: WP 10.290 E32
Max Power - Kw @ r/min: 213/2200
Max Torque - N.m @ r/min: 1160/1200~1600
HP: 280
Cylinder: 6 Inline
Water Cooled: Yes
Direct Injection: Yes
Engine Driven P.T.O: Applicable to 2628B Only
Displacement (I): 9,726
Compression Ratio: 17:01
Service: Dual circuit air brakes
Emergency / Parking: Spring potential brake
Auxiliary: ABS & EVB
Size and ply rating: 315-80R22.5 incl. spare wheel
Type: VR4/01D-7.5
Suspension: Non-free standing stabilization leaf spring, hydraulic shock absorber Middle HD7/016DGS-13/4.769
Type: HD7/016DGS - HL7/015DS-13/4.796
Suspension: Stabilizator suspension, 13 pieces leaf spring (20mm each), Hub reduction axles
Alternator: 70Amp
Starter Motor: 5.75kW
Batteries: 2 x 12V - 135AH
Gradeability @ GVM: 30% @GVM
Max Geared Road Speed: 90km/h (Limited to 80km/h)
Final Drive Ratio: 4,769
Make / Type / Size: GFX 430mm single
Operation: Single dry frictional disc, diaphragm spring, pulling type
New Vehicle: 3 years/300 000km (South Africa only)
Make/Model: 12JS160T+QH50
No Gears: 12
Synchromesh or Constant Mesh: Synchromesh
Transfer Box:N/A
P.T.O: Yes
Overall Length (OL): 7680 (SWB) / 9390 (LWB)
Overall Width (OW): 2 495
Overall Height (OH): 3 085
Front Overhang (FOH): 1 435
Rear Overhang (ROH): 1350 (SWB) / 1940 (LWB)
Wheel Base (WB): 4175 (SWB) / 5175 (LWB)
Bumper to Back of Cab (BBC):1 880
Cab to Rear Axle / unit (CA): 3735 (SWB) / 4735 (LWB)
Turning Radius (TR):8 500
Fuel Tank Capacity (FTC): 400 LTR Aluminum
Manufacturers Gross Vehicle Mass (GVM): 26 000
Manufacturers Gross Combination Mass (GCM): 43 000
Manufacturers Front Axle Mass (GA): 7 500
Manufacturers Rear Axle Mass (GAU): 26 000
Permissible Maximum Vehicle Mass (V): 25 500
Permissible Maximum Front Axle Mass (AF): 7 500
Permissible Maximum Rear Axle Mass (AR): 18 000
Unladen Front Axle Mass (UF): 4 140
Unladen Rear Axle Mass (UR): 4 540
Total Unladen Mass (UT):8 680
Permissible Max Drawing Vehicle Mass (D/T): 43 000
Day Cab: Hydraulic Tiltable Cab
SPECIFICATIONS
Additional Applications
| Models | Variant | Price |
|---|---|---|
| 2628-K 6x4 |
Chassis Cab | R P.O.A |
| 2628 LWB 6x4 |
Chassis Dropside | R P.O.A |
| 2628-B 6x4 |
Chassis Mixer | R P.O.A |
| 2628-K LWB 6x4 |
Chassis Tanker | R P.O.A |
| 2628 S 6x4 |
Truck Tractor | R P.O.A |
| 2628 SWB 10 cube Tub 6x4 |

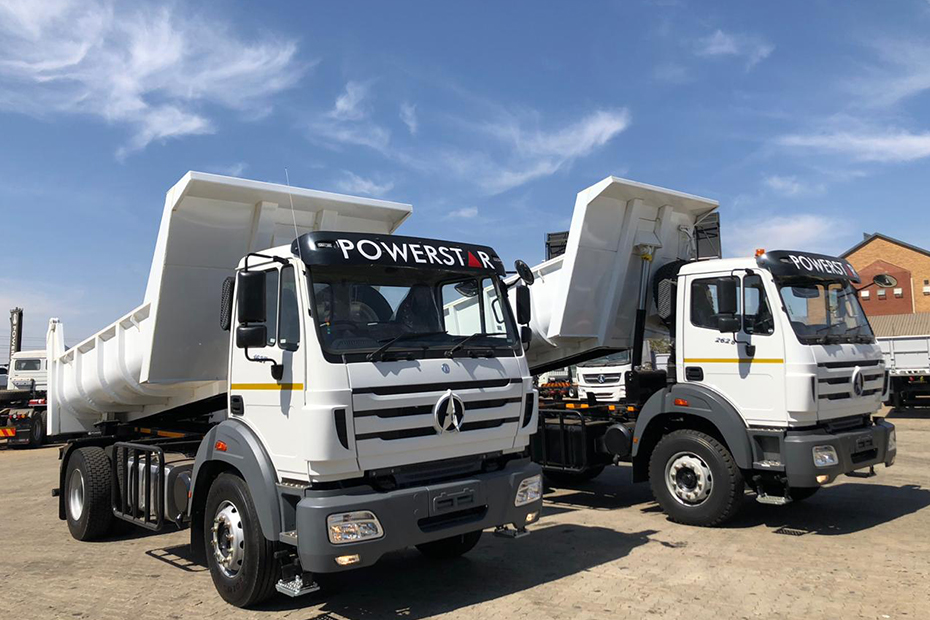

Tipper | R P.O.A |
| 2628 SWB 10 cube Ribless 6x4 |
Tipper | R P.O.A |
| 2628 SWB 12 cube Tub 6x4 |
Tipper | R P.O.A |
| 2628 SWB 16 000L 6x4 |

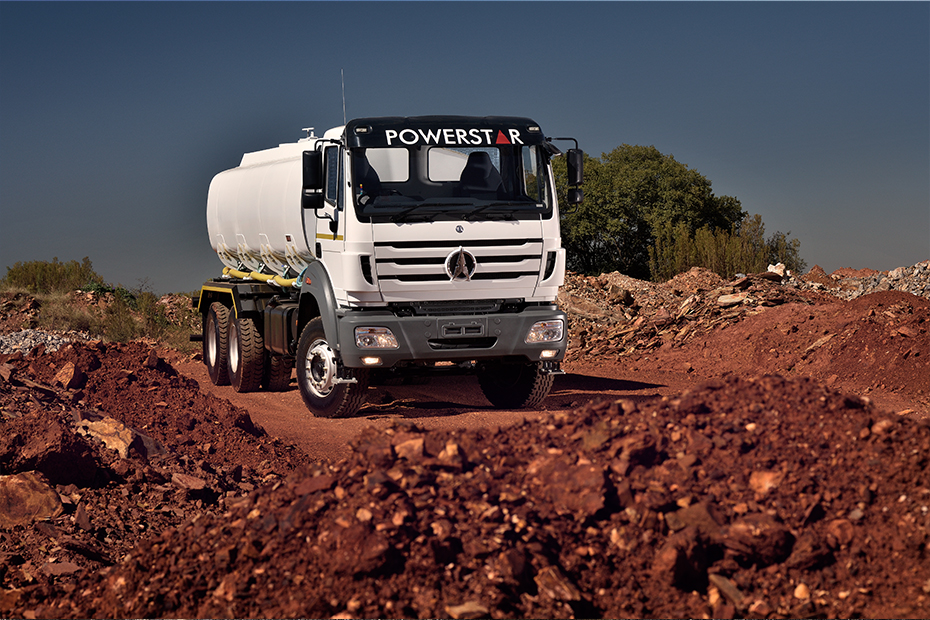

Water Tanker | R P.O.A |
| 2628 LWB 16 000L 6x4 |
Water Tanker | R P.O.A |
| 2628 6 cube 6x4 |

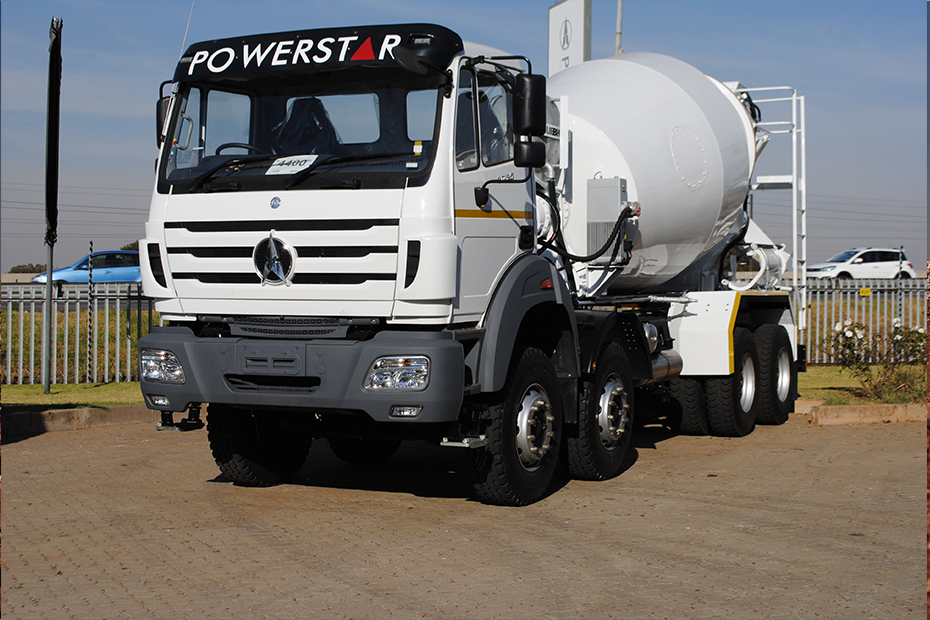

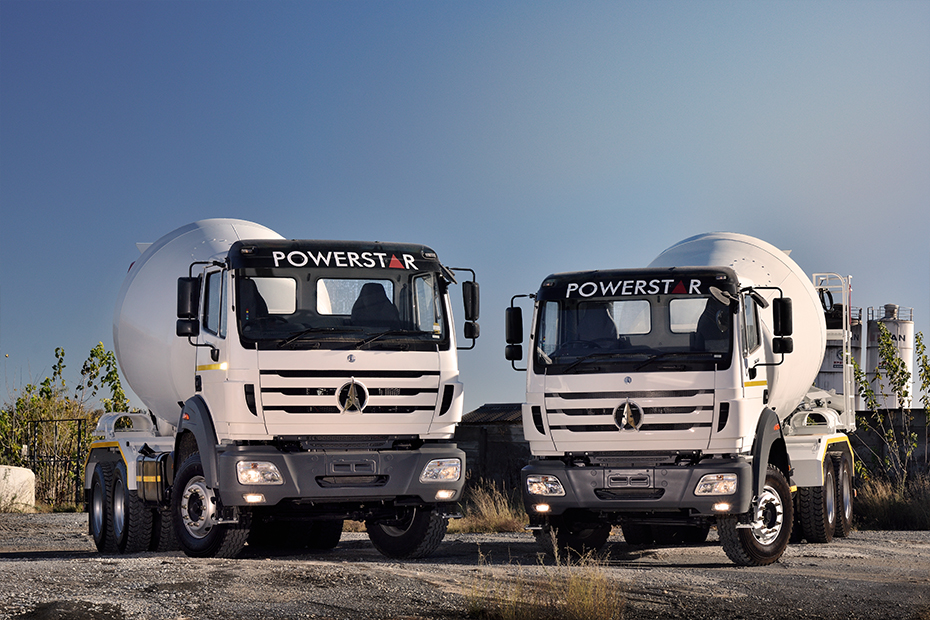

Mixer | R P.O.A |
